Mid Drive Motor Electric Bike Conversion Kit DIY

Regular price
$776.99 USD
Sale price
$776.99 USD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

SPECIFICATIONS


Weight: 5.6

Wattage: > 400w

Voltage: 48V

Rated Power: 1000W

Origin: Mainland China

Motor Type: Side Hung Motor

MAX Torque: 160 N.m

Light Drive Capacity (DCV / W): 6 /3(max)

Gearsensor Function: Support

Design: Brushless

Chainwheel: 36T/40T/42T/44T/46T BBSHD

Certification: CE

Brand Name: BAFANG

Bottom bracket: 68mm

Bafang motor Model: MM G320.1000/BBSHD

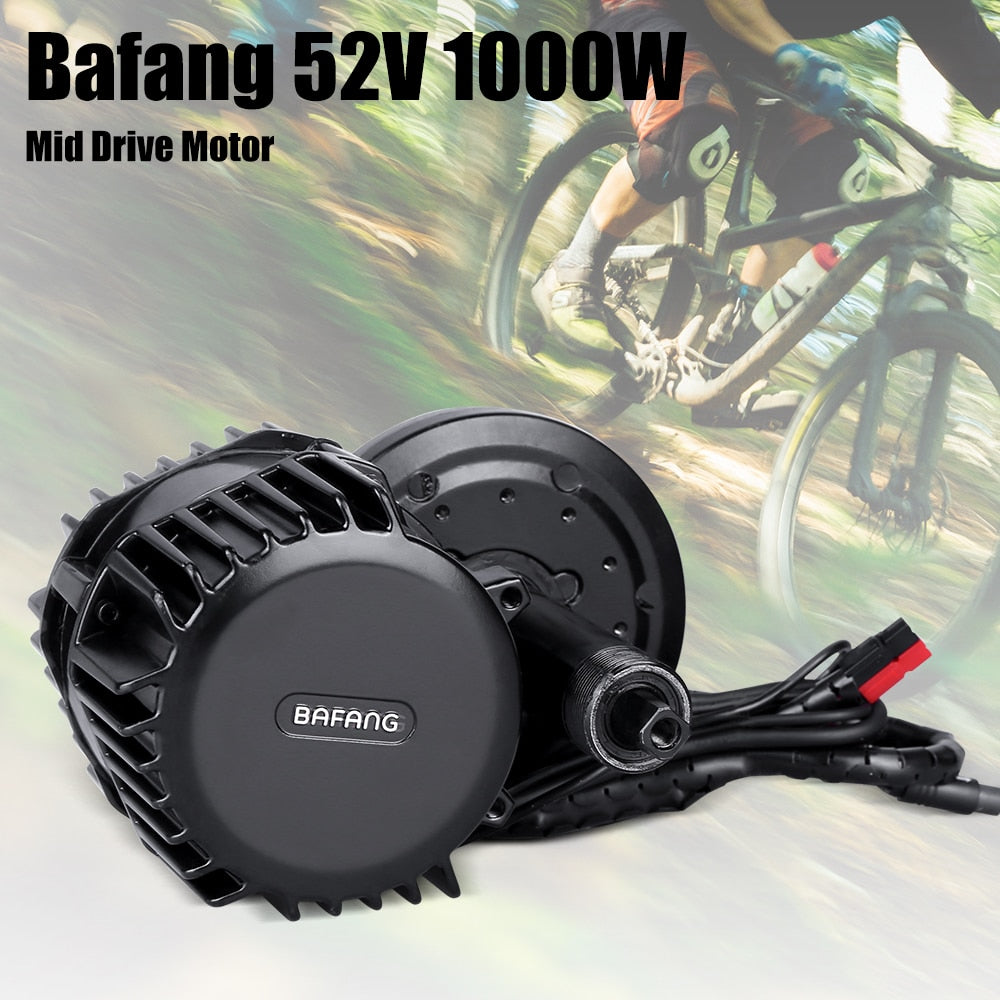

1000W Bafang BBSHD Mid Drive Motor




Hot Recommend:



Feature:

[Powerful]1000W is the most powerful bafang BBSHD series mid drive motor, max speed up to 65km/h.

[Upgrade]Upgraded IRFB3077 mosfets controller.

✅[Four riding modes]Pure electric mode & human riding model & power assistance & push models. 4 working modes can be switched at will.

[Easy Installation]Can be successfully installed into an electric bicycle in just a few time by only a few tools which can remove the crankset and the center shaft, as well as tools for installing this mid-drive motor.

✅[Universal Compatible]It's compatiable with mountain bike,road bike, racing bike ect bikes with 68-73mm bottom bracke.



Specification:

Bafang Model:G320.1000

Power:1000W

Controller:52V 28A/48V 30A

No Load Speed(RPM) :160

Load Speed(RPM):140-150

MAX Torque:160 N.m

Efficiency: > 80%

PAS SENSOR : Speed Sensor

Reduction Ratio: 1 : 21.9

Centification:CE/EN 14764/ROHS

Waterproof Grade:IP65

Net Motor Weight: 6.0kg

Bracket bottom length:68mm

Motor Operation Temperature:-20℃-45℃

Display Working Temperature:-20℃-80℃

Waterproof Grade:IP65

You can choose BB size 68MM or 100MM or 120MM

Warm Tips: Both 48V 1000W and 52V 1000W are printed 48V 1000W on the motor, just different controllers. The 52V version needs to match rated 52V battery to work. If the battery you use is rated 48V, you need choose 48V version motor. Please kindly choose the right version based on the battery you use.








FAQ:

Q:How do I know if this mid drive motor fits for my bike?

A:This 68mm mid drive motor fits for the bike with 68mm or 73mm wide bottom bracket. 100mm mid motor fits for the bike with100mmm wide bottom bracket. 120mm mid drive motor fits for the bike with 120mm wide bottom bracket.


Q:Can I install the motor as soon as I receive it?

A:Before installing the motor, please follow the steps in the manual to connect the motor to see if the motor can work normally. If there is a problem, please contact us first, we will provide technical support, don't worry.

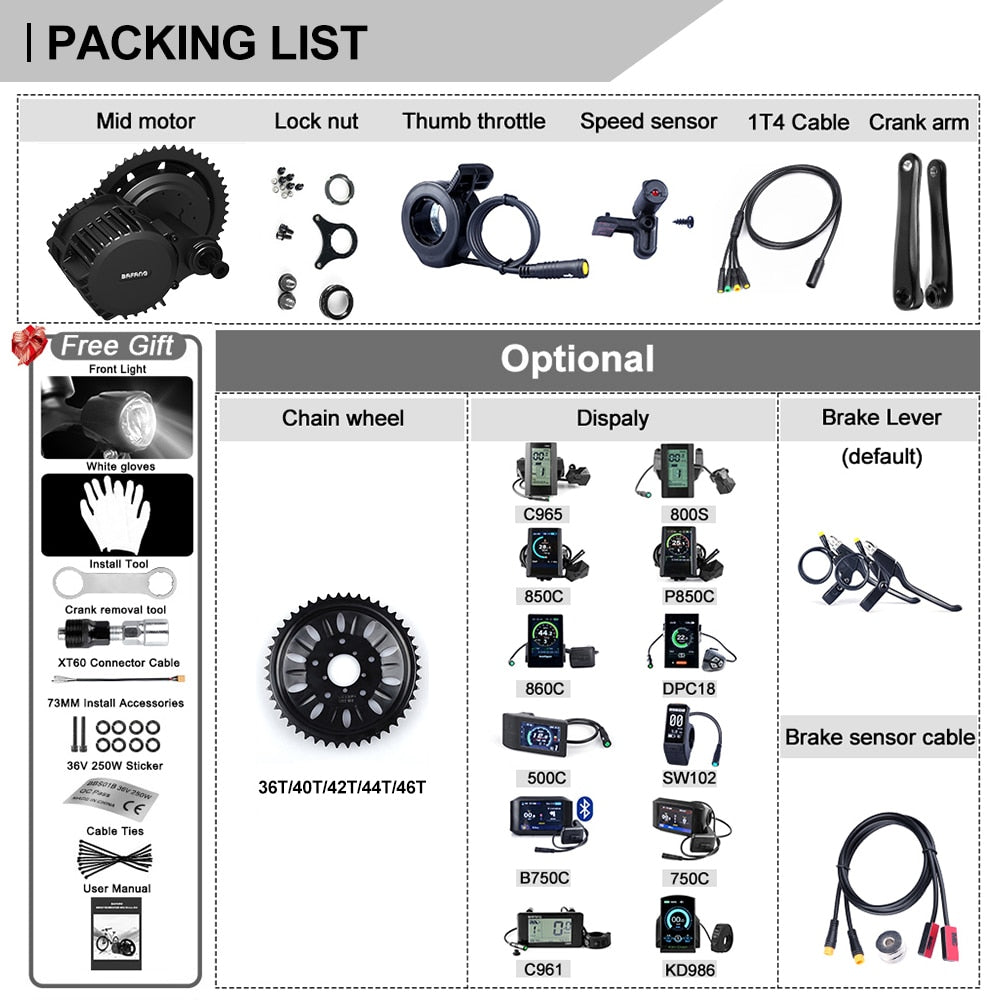

Packaging List:

1 * Mid Drive Motor

1 Pair * Brake Levers(Default)or Brake Sensors

1 Pair * Crank

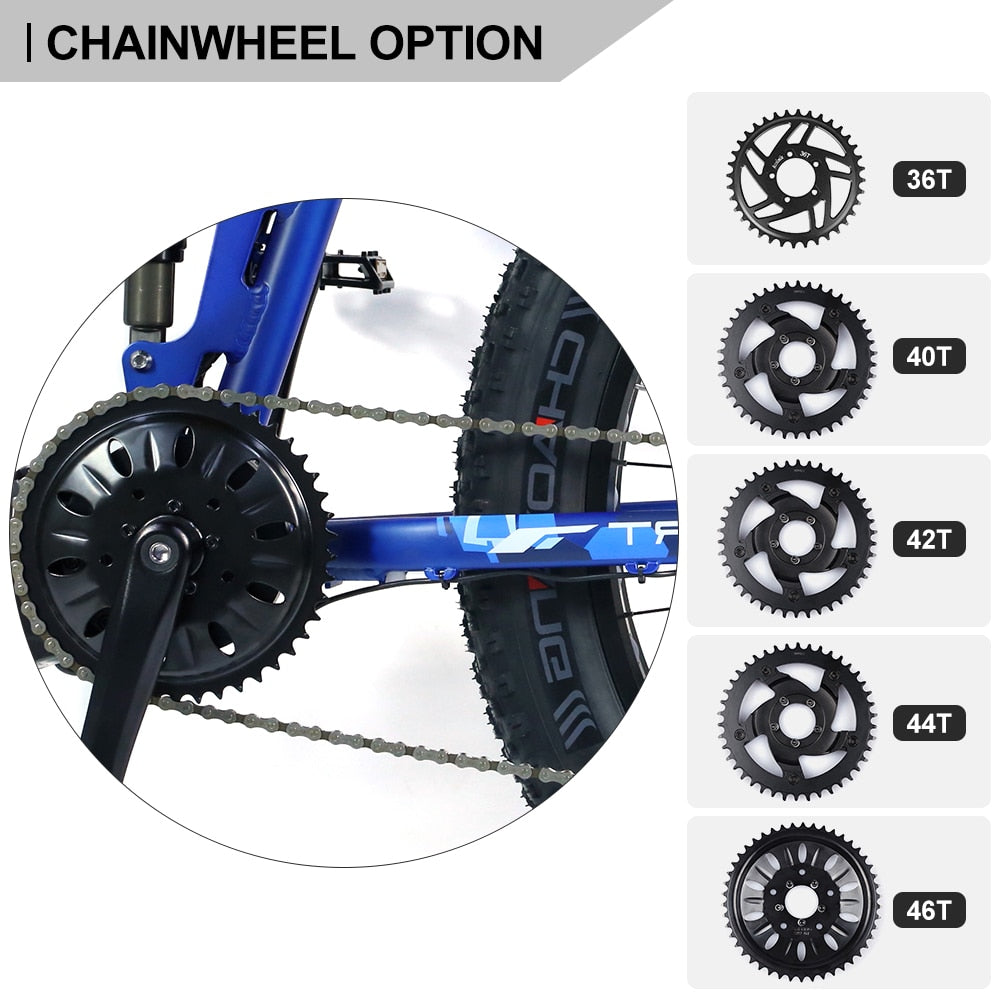

1 Pair * Chainwheel (42T default, 36T/42T / 44T/ 46T opition)

1 Set * Thumb Throttle

1 Set * Speed Sensor

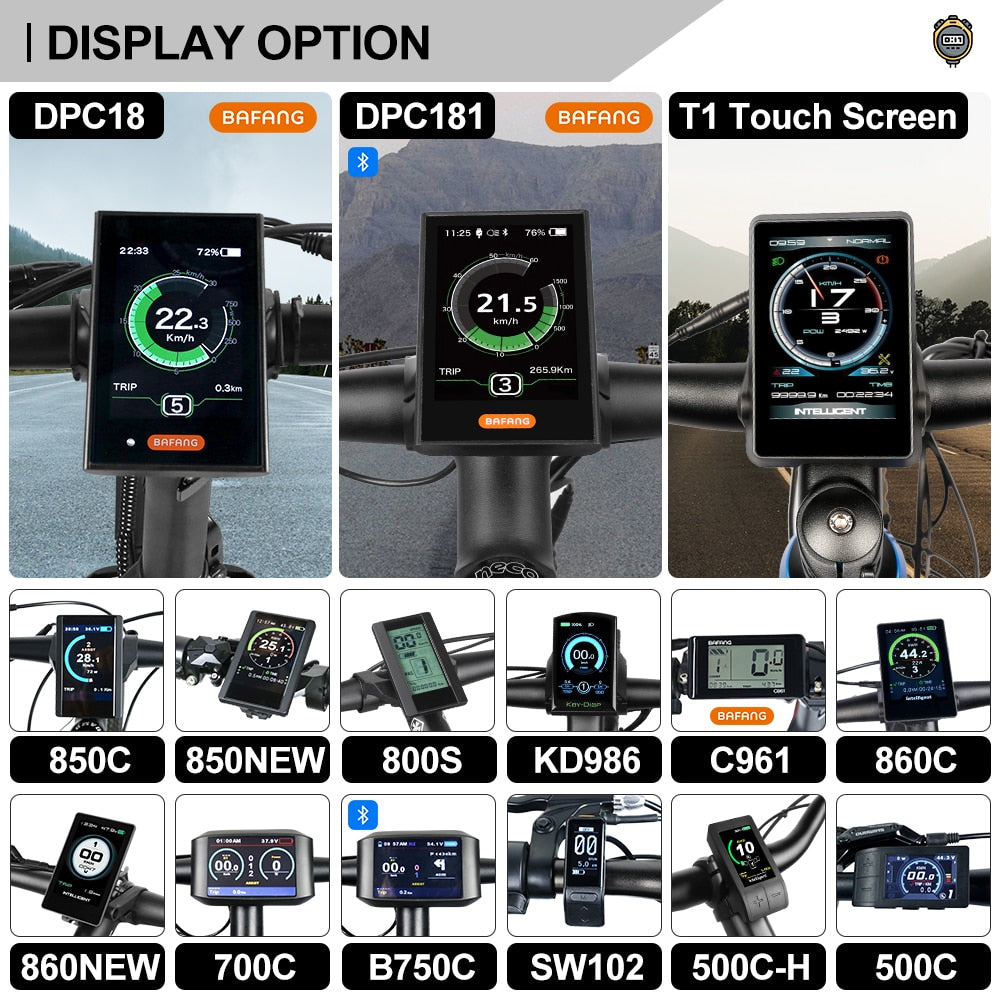

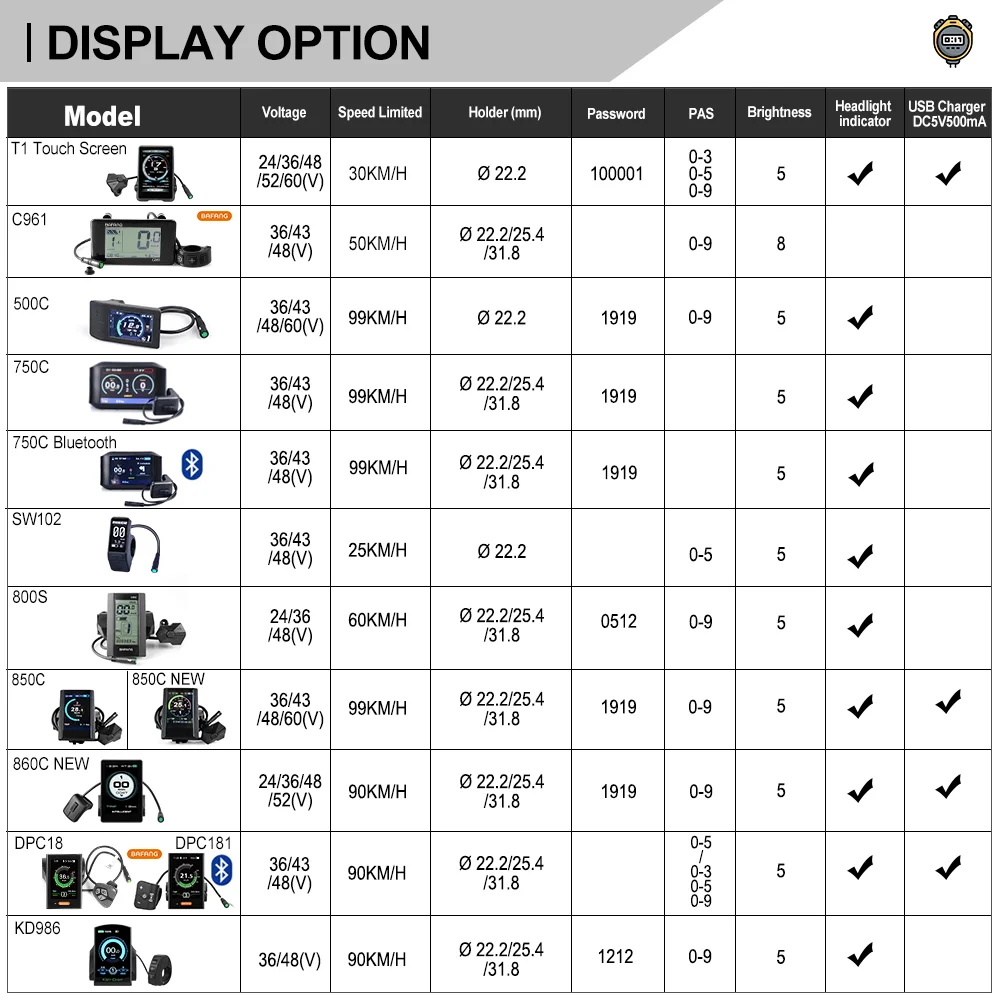

1 * Display (DPC181Bluetooth,860C New,750C Bluetooth, DPC18, KD986, P850C, 850C, 750C, SW102, 500C,500C-H, C965, C961 Option)

1 * 4 in 1 Cable

1 * Accessories

Gifts: 1 PC 6V Front Light + 1 PC Gloves + 1 PC Install Tool Wrench + 1 PC Crank Removable Tool + 1 PC XT60 Port Motor Battery Connector Cable + 1 set * Install Accessories for 73mm Bottom Bracket + 4 PCS 36V 250W Stickers + Cable ties + User Manual
